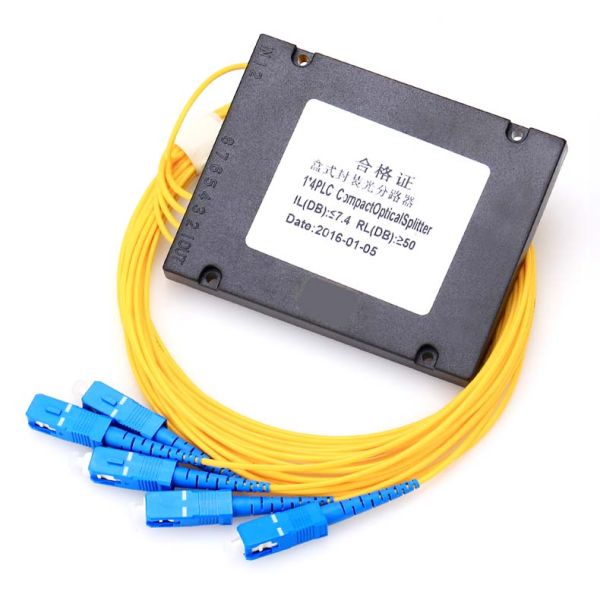

G657A G625D 1X4 SC / UPC ABS Box Fiber Optic Splitter 2.0mm 3.0mm 1m 1.5m Cable

Brand Name : DAMU

Model Number : ABS 1*4U

Certification : CE

Place of Origin : CHINA

MOQ : 2pcs

Supply Ability : 20000pcs/day

Packaging Details : blister packing,outside carton

Name : ABS Box Fiber Optic Splitter

connector : SCUPC

fiber : G675A OR G625D

Length : 1.0m (±0.1) or customer specified

BRAND : DAMU

fiber dia : 2.0mm OR 3.0mm

Contact Now

1X4 SC/UPC ABS box type 2.0mm/3.0mm 1m/1.5m cable length G657A G625D fiber blister packing

Description Of Fiber Optic PLC Splitter
Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

specification
1x4
1x8
1x16
Return loss
>55
>55
>55
Insert loss
<7.4
<10.7
<13.9
Pigtail Diameter:
0.9mm
0.9mm
0.9mm
Fiber type
G657A1
G657A1
G657A1
Fiber length
0.3M
0.3M
0.3M
connector type
SC
SC
SC
operating temperature
-40~85
-40~85
-40~85
storage temperature
-40~85
-40~85
-40~85
operating wavelength
1260~1650NM
1260~1650NM
1260~1650NM

Application Of Fiber Optic Splitter

  • FTTH
  • Passive optical networks (PON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
  • FTTX Systems
  • PON Networks
  • CATV Links
