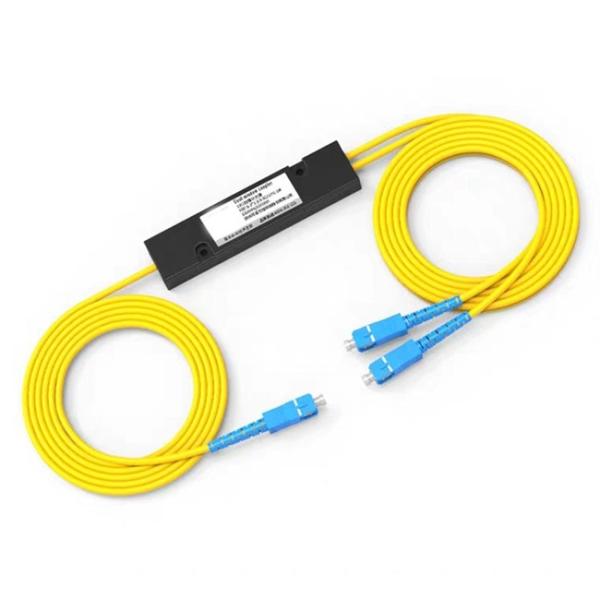

Lightweight ABS 1x2 Plc Splitter Environment Stable With Low Return Loss

  • 1
  • 2
  • 3

Brand Name : DAMU

Model Number : DM-FBT1

Certification : CE ROSH ISO9001

Place of Origin : China

MOQ : 50

Payment Terms : T/T

Supply Ability : 500000/month

Delivery Time : 3-7

Packaging Details : NORMAL PACKING

Fiber type : Custom,Singlemode or multimode,G657

Application : FTTH FTTB FTTX Network,CATV,Splitter,LAN,FTTH FTTB FTTX PON CATV

Product name : PLC splitter

Connector : SC/APC/UPC

Material : PVC option,fiber,ABS+PC,connector

Warranty : 3 years

Color : White,12 colors are available

Fiber length : 1m or customized

Contact Now

Product Details
Name ABS Fiber Optical Splitter Fiber Model SM / MM
Ferrule Type UPC APC Material PVC LSZH OFNR OFNP
Package PE Bage
High Light

Fiber Optic Splitter 1x2

,

PVC Fiber Optic Splitter 1x2

,

1x2 ABS PLC Splitter
Product Description

Lightweight Fiber Optic Splitter 1x2 ABS PLC Splitter Low Return Loss

Description:

ABS Fiber Optic Splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.

Feature:

Low Excess loss

Various Coupling Ratio

Environment stable

Single mode and multi mode available

Application:

Long-haul Telecommunications

CATV Systems & Fiber Optic Sensors

Fiber Optic communication system

Local Area Network

Specification:

Parameters 1×2 1×4 1×8 1×16 1×32
Operating Wavelength (nm) 1310/1490/1550
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 17/17.4
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5
Temperature Stability (-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85


Lightweight ABS 1x2 Plc Splitter Environment Stable With Low Return Loss
