ABS Box Type Singlemode 9 / 125 OS2 1x32 PLC Fiber Splitter Mini Module SC / UPC

Product Categories
Shenzhen damu technology co. LTD
Contact Now

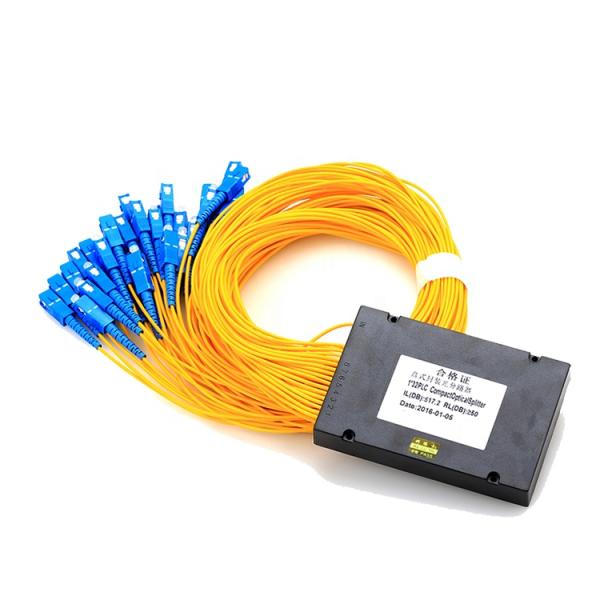

ABS Box Type Singlemode 9 / 125 OS2 1x32 PLC Fiber Splitter Mini Module SC / UPC

Brand Name : DAMU

Model Number : ABS 1*32U

Certification : CE

Place of Origin : CHINA

MOQ : 2pcs

Supply Ability : 20000pcs/day

Packaging Details : blister packing,outside carton

material : ABS BOX

connector : SCUPC

fiber : G675A OR G625D

Length : 1.0m (±0.1) or customer specified

CAPACITY : 1*32

fiber dia : 2.0mm OR 3.0mm

Contact Now

ABS Box Type Module 1x32 PLC Fiber Optic Splitter in ABS Box SCUPC connector mini box

Product details

Product Name PLC Splitter ABS Module 1X32
Fiber Type LC,FC,SC,ST
Type ABS Box Type
Ferrule Polish End-face PC,UPC,APC
Application gepon,ftth ,fttx
Insertion Loss 4-22dB
Fiber Length 1m ,1.5m, 2m or customized
Sleeve Diameter 2.0mm,3.0mm,0.9mm
Package bare, module, rack mount,ABS case
Wavelength 1310/1490/1550nm
Product Keywords PLC Fiber Optic Splitter ABS Box Type 1:32

Product Description:

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. PioneerGoods provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features:

1) Low Insertion loss
2) Low PDL
3) Compact Design
4) Good channel-to-channel uniformity
5) Wide Operating Wavelength:From 1260nm to 1650nm
6) Wide Operating Temperature: From -40℃ to 85℃
7) High Reliability and Stability

Applications:

1) FTTX Systems
2) PON Networks
3) CATV Links
4) Optical Signal Distribution

Compliance:

1) Telcordia GR-1209-CORE-2001
2) Telcordia GR-1221-CORE-1999
3) RoHS

Parameters
1×2
1x4
1x8
1x16
1x32
1x64
1x128
Operating Wavelength(nm)
1260～1650
Insertion Loss (dB)(P/S rade)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/ 16.9
20.5/ 21.0
24.2/ 24.5
Loss Uniformity(dB)
0.4
0.6
0.8
1.2
1.5
2.0
2.5
Return Loss (dB)(P/S Grade)
55/50
Polarization Dependent
0.2
0.2
0.2
0.25
0.3
0.35
0.5
Directivity (dB)
55
Wavelength Dependent
0.3
0.3
0.3
0.5
0.5
0.5
0.5
Temperature Stability(-40～8℃)
0.4
0.4
0.4
0.5
0.5
0.5
0.5
Operating Temperature(℃)
-40～85
Storage Temperature(℃)
-40～85
Module Dimension (mm)(L×W×H)
100×80×10
120×80×18
140×115×18

Ordering Information:PLC-A-B/C-D/E-F/G-H

A B/C D/E F/G H
PLC Port Input/Output Pigtail Type

Input/Output

Fiber Length

 Input/Output Connector

Package

Type
PLC

102=1 x 2

104=1 x 4

108=1 x 8

116=1 x 16

132=1 x 32

164=1 x 64

202=2 x 2

204=2 x 4

208=2 x 8

216=2 x 16

232=2 x 32

1=900um loose tube
2=2.0mm loose tube

3=3.0mm loose tube

05=0.5M

……

10=1.0M

…….

15=1.5M

……

0=None

FU=FC/UPC

FA=FC/APC

SU=SC/UPC

SA=SC/APC

LU=LC/UPC

LA=LC/APC

ST=ST

X=Others

P2=100 x 80 x 10.5

mm

P3=120 x 80 x 18

mm

P4=140 x 115 x 18

mm

XL=1,2,3,4U LGX Module

X=Others

Product Highlights

Premium Fiber Splitter Guarantees Stable Transmission
With compact structure and bending insensitive cables, the ABS Module Splitter takes less
distortion during use, which ensures reliable optical transmission.
ABS Box Type Singlemode 9 / 125 OS2 1x32 PLC Fiber Splitter Mini Module SC / UPC

Bend Insensitive Fiber
G.657A1 cables with 10mm min.bend radius allow tighter or bending cable routing.
ABS Box Type Singlemode 9 / 125 OS2 1x32 PLC Fiber Splitter Mini Module SC / UPC

Nano-zirconia Ceramic Ferrules
Nano-zirconia Ceramic Ferrules
Nano-zirconia ceramic ferrules provide 10.5dB max.IL and 55dB min.RL.

SC/UPC Connectors
The fibers contain SC/UPC connectors for plug and play, no need to splice.
ABS Box Type Singlemode 9 / 125 OS2 1x32 PLC Fiber Splitter Mini Module SC / UPC
