2.0mm G657A Fiber Optical Splitter 1x8 , ABS BOX PLC Splitter With SCUPC Connectors

Product Categories
Shenzhen damu technology co. LTD
Contact Now

2.0mm G657A Fiber Optical Splitter 1x8 , ABS BOX PLC Splitter With SCUPC Connectors

Brand Name : DAMU

Model Number : SCUPC 1X8 ABS BOX PLC

Place of Origin : CHINA

MOQ : 2pcs

Supply Ability : 20000pcs/day

Packaging Details : blister packing,outside carton

fiber : G675A OR G625D

Length : 1.0m (±0.1) or customer specified

packing : plastic bag

cable dia : 0.9/2.0/3.0mm

port : 1in 8 out

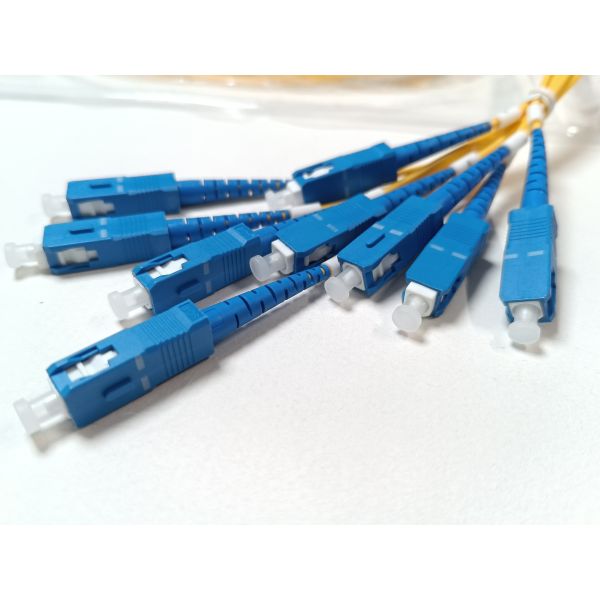

CONNECTOR : SCUPC

Contact Now

2.0mm G657A Fiber Optical Splitter 1x8 ABSBOX PLC Splitter With SCUPC Connectors

Product Description

SA connector steel tube gpon 1x16 1*16 mini plc splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. PioneerGoods provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Specification
item
value
Model Number
1x8 plc splitter
Type
FTTx Solutions
Place of Origin
China
Guangdong
Brand Name
DAMU
Port
1x8
Input Pigtall Style
2.0mm 3.0mm
Input Connector
SC,LC,FC,ST
Output Pigtll Style
2.0mm 3.0mm
Fiber Length
0.5m,1m,1.5m,2m,3m,4m
Output Connctor
SC,LC,FC,ST
Application
FTTX Systems
No. of Fiber
8.
Use
FTTH

2.0mm G657A Fiber Optical Splitter 1x8 , ABS BOX PLC Splitter With SCUPC Connectors

MAIN SPECIFICATION
Parameter
1x2
1x4
1x8
1x16
1x32
Operating Wavelength (nm)
1260~1650
Fiber Type
G657A, G652D or Customer Specified
Insertion Loss (dB)(S/P Grade)
4.2/4.0
7.5/7.2
10.7/10.4
13.9/13.7
17.1/16.7
Return Loss (dB)(S/P Grade)
50/55
50/55
50/55
50/55
50/55
Wavelength Dependent Loss (dB)
0.3
0.3
0.3
0.5
0.5
Operating Temperature (°C)
-40~85
Storage Temperature (°C)
-40~85
Packaging Dimension (mm)
40*4*4
40*4*4
40*4*4
40*4*4
50*7*4
Note: The above parameter is for PLC splitter with connectors. If w/o connector, insertion loss will reduce by 0.2dB.

2.0mm G657A Fiber Optical Splitter 1x8 , ABS BOX PLC Splitter With SCUPC Connectors

2.0mm G657A Fiber Optical Splitter 1x8 , ABS BOX PLC Splitter With SCUPC Connectors

2.0mm G657A Fiber Optical Splitter 1x8 , ABS BOX PLC Splitter With SCUPC Connectors

2.0mm G657A Fiber Optical Splitter 1x8 , ABS BOX PLC Splitter With SCUPC Connectors2.0mm G657A Fiber Optical Splitter 1x8 , ABS BOX PLC Splitter With SCUPC Connectors2.0mm G657A Fiber Optical Splitter 1x8 , ABS BOX PLC Splitter With SCUPC Connectors

2.0mm G657A Fiber Optical Splitter 1x8 , ABS BOX PLC Splitter With SCUPC Connectors

2.0mm G657A Fiber Optical Splitter 1x8 , ABS BOX PLC Splitter With SCUPC Connectors

2.0mm G657A Fiber Optical Splitter 1x8 , ABS BOX PLC Splitter With SCUPC Connectors

2.0mm G657A Fiber Optical Splitter 1x8 , ABS BOX PLC Splitter With SCUPC Connectors
