MPO MTP Fiber Optic Patch Cord PVC LSZH OM3 With Low Insertion Loss

Product Categories
Shenzhen damu technology co. LTD
Contact Now

MPO MTP Fiber Optic Patch Cord PVC LSZH OM3 With Low Insertion Loss

Brand Name : DAMU

Model Number : DM-PC-FCPC

Certification : CE ROSH ISO9001

Place of Origin : China

MOQ : 50

Payment Terms : T/T

Supply Ability : 500000/month

Delivery Time : 5-8

Packaging Details : NORMAL PACKING

Fiber type : DX MM

Application : FTTH FTTB FTTX Network,FTTH/Test equipments/TV/LAN/Telecommunication equipments

Connector type : PC/UPC/APC,SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO,ST SC LC FC,SC/Apc & SC/Upc,SC-SC LC-LC FC-FC ST-ST or Hybrid

Length : 1m 2m 3m or Customized

Insertion loss : ≤0.3dB

Connector : LC,SC,SC LC FC ST MU,anything,SC/APC

Material : PVC,LSZH,PVC/LSZH

Product name : Fiber Optic Patch Cord

Item : optical fiber patch cord

Quality control : 100% test before shipping

Polish : PC/UPC/APC

Real factory : Yes

Contact Now

Product Details
Name OM3 MPO / MTP Fiber Optic Loopback Frruel End-face UPC / APC
Fiber Type SM / MM Cable OD 3.0MM
Material PVC LSZH OFNR OFNP
High Light

OM3 MPO MTP Fiber

,

LSZH MTP MPO Fiber

,

OM3 Fiber Optic Loopback
Product Description

PVC LSZH OM3 MPO MTP Fiber Optic Loopback With Low Insertion Loss

Description:
MTP/ MPO Fiber Loopbacks is designed to provide a media of return patch for a fiber optic signal.

Typically it is used for fiber optic testing applications or network restorations.

For the testing applications, the loopback signal is used for diagnosing a problem.

Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem.

Feature:

Compact design
Compatible with Fast Ethernet, Fiber Channel, ATM, and Gigabit Ethernet
Short wavelength devices

Application

Equipment interconnection
Device pig-tailling
Premise networks
Patch panel applications
Communications connections
LoopBack for network components testing

Specification:

Insertion loss Singlemode PC≤ 0.3dB UPC≤ 0.2dB APC ≤ 0.3dB
Multimode PC≤ 0.5dB UPC≤ 0.3dB APC ≤ 0.3dB
Return loss Singlemode PC≥ 50dB UPC≥ 50dB APC ≥ 60dB
Multimode PC≥ 25dB UPC≥ 45dB APC ≥ 50dB
Repeatability ≤ 0.1db
Changeability ≤ 0.2dB
Working temperature -40 to +8o Celsius
Durability 1000 times
Sustain tension ≥ 100N
Fiber 9/125um , 50/125um, 62.5/125um, OM3 etc.
Diameter 0.9mm 2.0mm 3.0mm, etc.
Cable material PVC
Cores Simplex, duplex, 4cores, 6cores, 8cores, 12cores, etc.

MPO MTP Fiber Optic Patch Cord PVC LSZH OM3 With Low Insertion LossMPO MTP Fiber Optic Patch Cord PVC LSZH OM3 With Low Insertion Loss


Product Tags:

Fiber Optic Patch Cord PVC



Fiber Optic Patch Cord LSZH



OM3 mtp mpo fiber patch cable


Wholesale MPO MTP Fiber Optic Patch Cord PVC LSZH OM3 With Low Insertion Loss from china suppliers

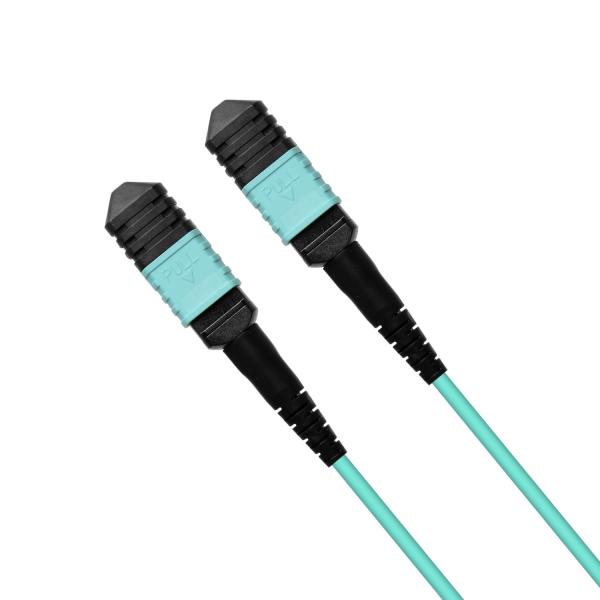

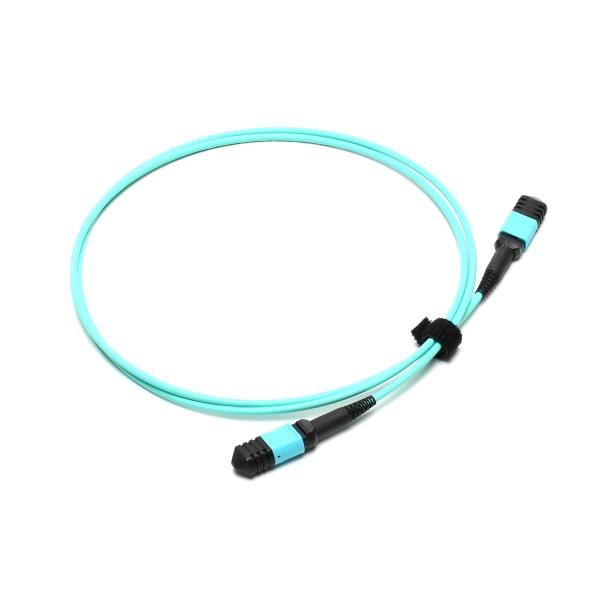

MPO MTP Fiber Optic Patch Cord PVC LSZH OM3 With Low Insertion Loss Images
