Automatic Fiber Optic Cable Stripper Cable Stripping Machine For Peeling Shearing Openings

Shenzhen damu technology co. LTD
Contact Now

Automatic Fiber Optic Cable Stripper Cable Stripping Machine For Peeling Shearing Openings

Brand Name : DAMU

Model Number : stripping machine

Certification : CE

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100PCS/DAY

Packaging Details : CARTON/WOOD PACKING

adjust the length : 25mm-38mm

Cable dia : 1.8mm-3.0mm

capacity(speed) : 1500-1800pcs/hour

Use atmospheric pressure : 0.6-0.8 MPa

Power supply : 220V 50Hz

machine size : 405 x 415 x 445 mm

Contact Now

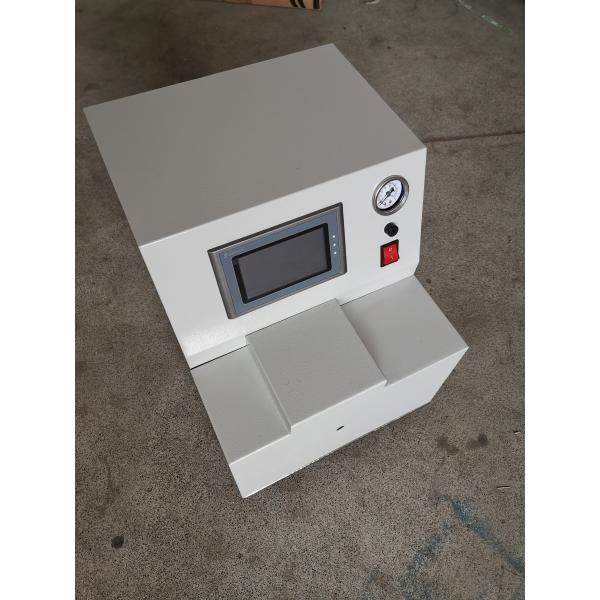

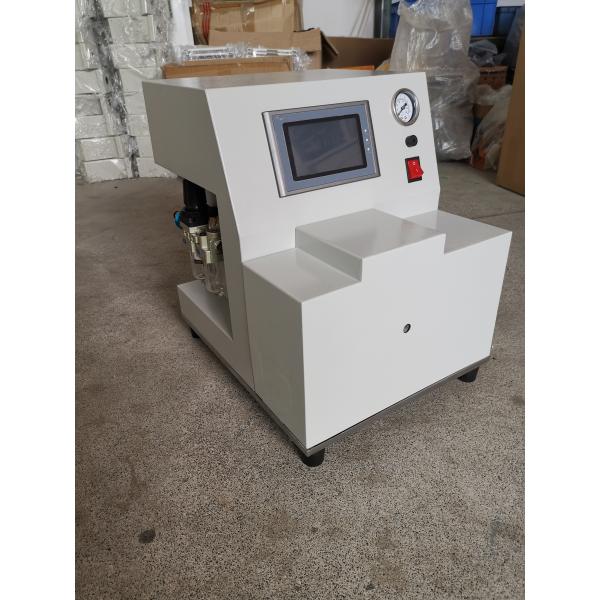

Automatic Optical Cable Stripper

I. Summary

1. This model is mainly for the strippling of 1.8mm to 3.0mm indoor optical cables in the current optical communication industry (peeling and shearing openings 3 in 1).

2. This machine adopts PLC control system, which is accurate and fast.

3. Touch screen is easy to operate, learn and understand.

4. Peeling, shearing, cutting speed, stable performance, high accuracy, easy to adjust the length (25mm-38mm).

5. The number of stripping, shearing and cutting optical cables per hour is 1500-1800pcs.

6. Improve the traditional peeling method with pedal press, and evolve into direct insertion, which not only saves physical strength, but also improves the efficiency .

7. Moving the cabling front and rear the operation, the ordinary indoor simplex cable with the outer diameter of 1.8 mm to 3.0 mm can be used on this machine, without changing the cutter, and without the worry of pinching fingers.

II. Specifications

1

Use atmospheric pressure:

0.6-0.8 MPa
2

Power supply:

220V 50Hz

3

Weight:

25kgs
4

Volume:

405 x 415 x 445 mm

Automatic Fiber Optic Cable Stripper Cable Stripping Machine For Peeling Shearing Openings

Automatic Fiber Optic Cable Stripper Cable Stripping Machine For Peeling Shearing Openings

Automatic Fiber Optic Cable Stripper Cable Stripping Machine For Peeling Shearing Openings
